Material: Aerometal Aluminium Alloy

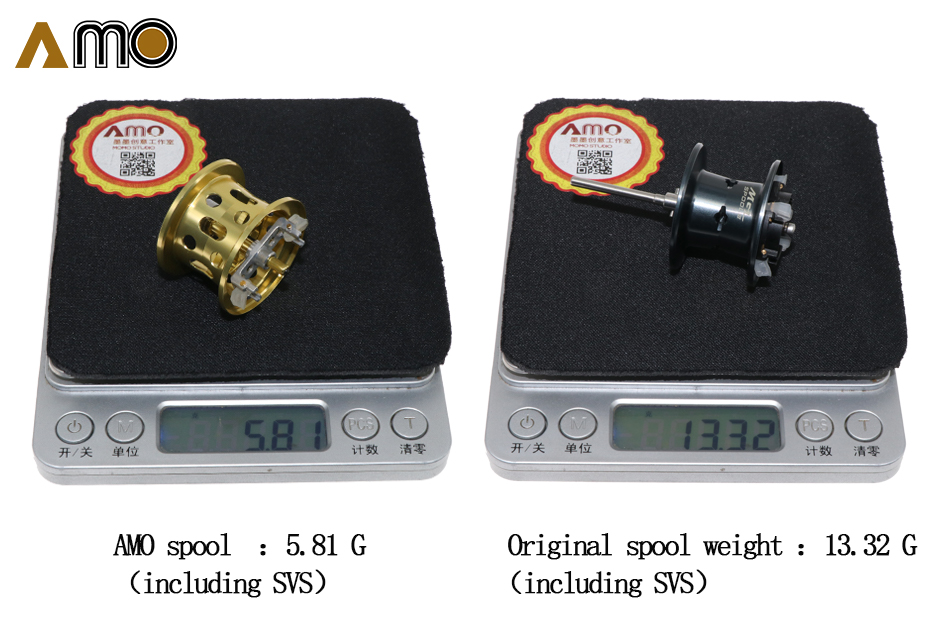

Weight：（With Bearing And Pin）

              SVS brake version:5.65G

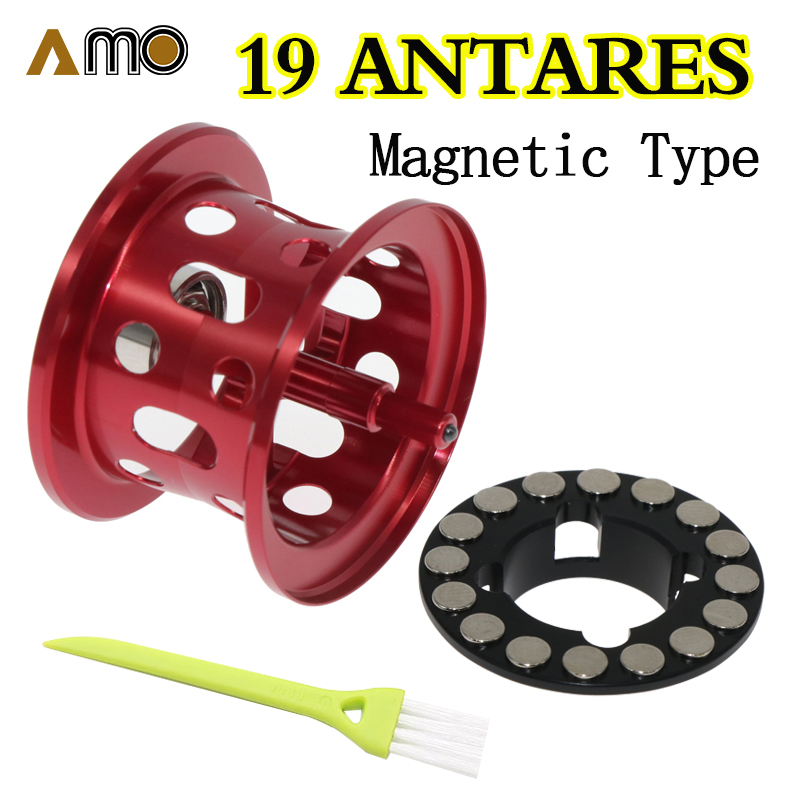

              Magnetic Type :4.95G

Bearing size：4x11x4

Depth：4.5 mm
Lure Weight:2-30G
Line Capacity：YGK X8 PE 1.2#—130m

magnetic  It can be used for:   19 ANTARES MGLV

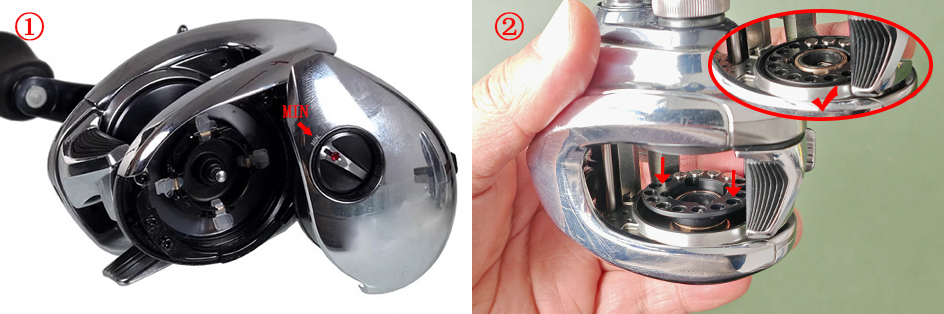

Installation steps of magnetic brake

1. Set the brake to MIN, take out the spool，and close the side cover.

2. Assemble the magnetic modification component to the end as shown in the diagram

1. Set the brake to MIN, take out the spool，and close the side cover.

2. Assemble the magnetic modification component to the end as shown in the diagram

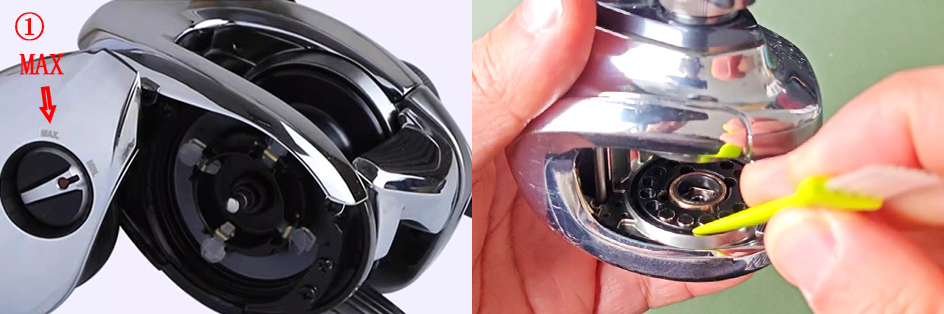

Dismantling steps of magnetic brake

1. Open the side cover and remove the spool， then close the side cover and adjust the brake to maximum (MAX).

2. Use the delivered brush to insert into the gap as shown in the diagram and open the magnetic brake modification.
