Material:POM

Weight: 2.1G(Contains 4 magnets)

It can be used for: 2019 ANTARES

The product is made of POM resin and processed by CNC. The magnet is tightly matched with the base and can be freely disassembled to match spools of different depths. matched with 16 magnets with a

 diameter of 4x2 thickness.

Note: There are 4 magnets installed on the brake to match the original spool. If you feel that the braking force is not enough, you can install the 16 free magnets in a positive and negative manner.

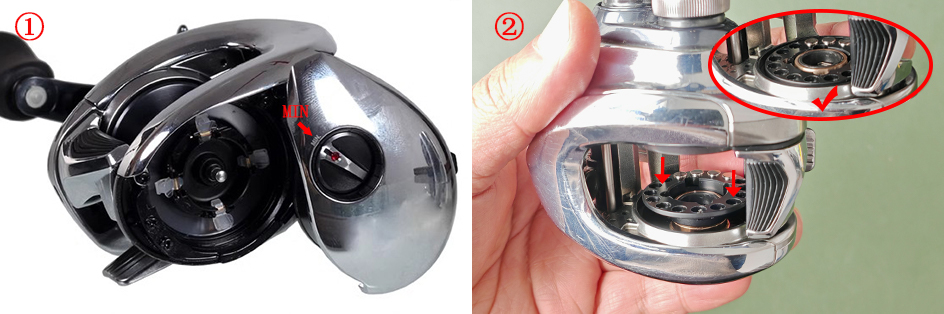

Installation steps of magnetic brake

1. Set the brake to MIN, take out the spool，and close the side cover.

2. Assemble the magnetic modification component to the end as shown in the diagram

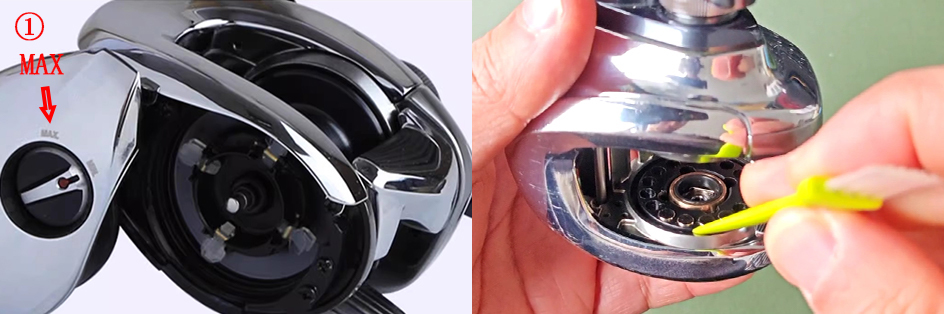

Dismantling steps of magnetic brake

1. Open the side cover and remove the spool， then close the side cover and adjust the brake to maximum (MAX).

2. Use the delivered brush to insert into the gap as shown in the diagram and open the magnetic brake modification.
